| TECHNICAL SPECIFICATION |
|---|
| Model ID |
|---|
| Manufacturer (Make) | Daelim |

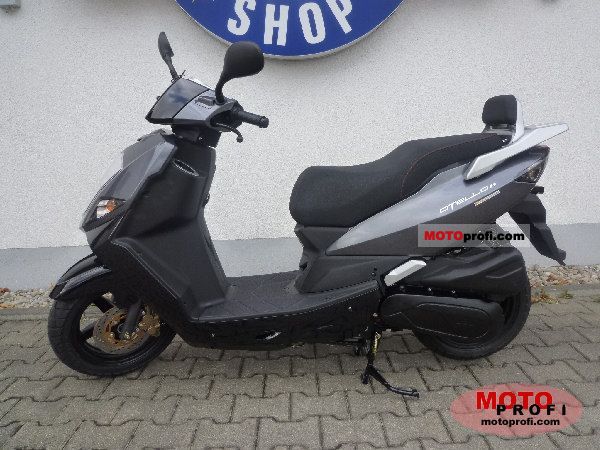

| Model Name | Otello 125 |
| Year | 2011 |
| Category(class) | Scooter |
| Engine |
|---|
| Engine Capacity (Displacement) | 124 ccm (7.57 cubic inches) |
| Engine Type | Single cylinder, four-stroke |
| Valves per Cylinder | 4 |
| Fuel System(Carburetion) | Injection |
| Starter System | Electric |
| Cooling System | Oil & air |
| Powertrain |
|---|
| Transmission (Final Drive) | Chain |
| Chassis/Suspension/Brakes |
|---|
| Front Suspension | Telescopic forke, hydraulic |
| Rear Suspension | Hydraulic shocks |
| Front Brakes | Single disc |
| Front Brakes Diameter | Ø220 mm (Ø8.66 inches) |
| Rear Brakes | Single disc |
| Rear Brakes Diameter | Ø200 mm (Ø7.87 inches) |
| Front Tire | 120/70-13 |
| Rear Tire | 130/60-13 |
| Dimensions |
|---|
| Overall Length | 1965 mm (77.36 inches) |
| Overall Height | 1120 mm (44.09 inches) |
| Seat Height | 740 mm (29.13 inches) |
| Dry Weight | 127.0 kg (280 lb) |
| Fuel Capacity | 9.50 litres (2.51 gallons) |
| Performance |
|---|
| Top Speed | - |
| Acceleration (dart, speedup) time | |
| 0-100 km/h | - |
| 0-60 mph | - |
| 1/4 mile | - |
| 60 to 140 km/h, highest gear | - |
