| TECHNICAL SPECIFICATION |
|---|
| Model ID |
|---|
| Manufacturer (Make) | Ducati |

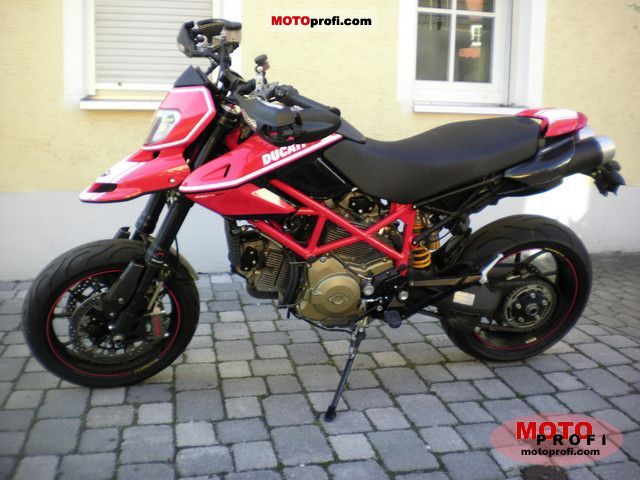

| Model Name | Hypermotard 1100 Evo SP |
| Year | 2011 |
| Category(class) | Super moto |
| Engine |
|---|
| Engine Capacity (Displacement) | 1078 ccm (65.78 cubic inches) |
| Engine Type | V2, four-stroke |
| Bore x Stroke | Ø98.0 mm x 71.5 mm (Ø3.86 inches x 2.81 inches) |
| Bore/Stroke Ratio | 1.37 |
| Compression Ratio | 11.3:1 |
| Timing System | DESMODROMIC VALVE CONTROL |
| Fuel System(Carburetion) | Injection. Siemens electronic fuel injection, 45mm throttle body |
| Starter System | Electric |
| Cooling System | Air |
| Exhaust System | Lightweight 2-1-2 system with catalytic converter with twin lambda probes. |
| Powertrain |
|---|
| Clutch | Dry multiplate with hydraulic control |
| Gearbox | 6 speed |
| Transmission (Final Drive) | Chain |
| Chassis/Suspension/Brakes |
|---|
| Frame Type | Tubular steel Trellis frame |
| Front Suspension | Marzocchi 50mm fully adjustable usd forks with DLC |
| Front Suspension Travel | 165 mm (6.5 inches) |
| Rear Suspension | Progressive linkage with fully adjustable Öhlins monoshock. Aluminium single-sided swingarm |
| Rear Suspension Travel | 141 mm (5.55 inches) |
| Front Brakes | Double disc |
| Front Brakes Diameter | Ø305 mm (Ø12.01 inches) |
| Rear Brakes | Single disc |
| Rear Brakes Diameter | Ø245 mm (Ø9.65 inches) |
| Front Tire | 120/70-17 |
| Rear Tire | 180/55-17 |
| Dimensions |
|---|
| Seat Height | 875 mm (34.45 inches) |
| Fork Angle (Rake) | 24.0° degrees |
| Wheelbase | 1465 mm (57.68 inches) |
| Fuel Capacity | 12.40 litres (3.28 gallons) |
| Performance |
|---|
| Max Power | 95.00 HP (69.3 kW) at 7500 RPM |
| Max Torque | 10.50 Nm (7.72 ft*lbs) at 10500 RPM |
| Top Speed | - |
| Acceleration (dart, speedup) time | |
| 0-100 km/h | - |
| 0-60 mph | - |
| 1/4 mile | - |
| 60 to 140 km/h, highest gear | - |
