Ducati Multistrada 1200 S 2010

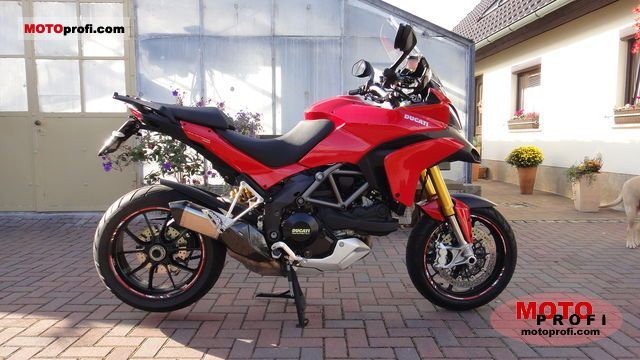

Ducati Multistrada 1200 S 2010 photo
Ducati Multistrada 1200 S 2010 photo 1Ducati Multistrada 1200 S 2010 photo 2Ducati Multistrada 1200 S 2010 photo 3
Ducati Multistrada 1200 S 2010 photo 4Ducati Multistrada 1200 S 2010 photo 5Ducati Multistrada 1200 S 2010 photo 6
Ducati Multistrada 1200 S 2010 photo 7Ducati Multistrada 1200 S 2010 photo 8Ducati Multistrada 1200 S 2010 photo 9
Ducati Multistrada 1200 S 2010 photo 10Ducati Multistrada 1200 S 2010 photo 11
Click photo to enlarge


TECHNICAL SPECIFICATION
Model ID
Manufacturer (Make)Ducati
Model NameMultistrada 1200 S
Year2010
Category(class)Sport-touring
Engine
Engine Capacity (Displacement)1198 ccm (73.11 cubic inches)
Engine TypeV2, four-stroke
Bore x StrokeØ106.0 mm x 67.9 mm (Ø4.17 inches x 2.67 inches)
Bore/Stroke Ratio1.56
Compression Ratio11.5:1
Timing SystemDESMODROMIC VALVE CONTROL
Fuel System(Carburetion)Injection. Tsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
Starter SystemElectric
Cooling SystemLiquid
Exhaust SystemStainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes
Powertrain
ClutchLight action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
Gearbox6 speed
Chassis/Suspension/Brakes
Frame TypeTubular steel Trellis frame
Front SuspensionÖhlins 48mm fully adjustable usd forks, electronic compression and rebound adjustment
Rear SuspensionProgressive linkage with fully adjustable Ohlins electronic monoshock. Aluminium single-sided swingarm
Front BrakesDouble disc
Front Brakes DiameterØ320 mm (Ø12.6 inches)
Rear BrakesSingle disc
Rear Brakes DiameterØ245 mm (Ø9.65 inches)
Front Tire120/70-ZR17
Rear Tire190/55-ZR17
Dimensions
Seat Height850 mm (33.46 inches)
Fork Angle (Rake)25.0° degrees
Wheelbase1530 mm (60.24 inches)
Dry Weight192.0 kg (423 lb)
Fuel Capacity 20.00 litres (5.28 gallons)
Performance
Max Power150.00 HP (109.5 kW) at 9250 RPM
Max Torque118.65 Nm (87.24 ft*lbs) at 7500 RPM
Power/Weight Ratio0.7 Hp/Kg
Top Speed-
Acceleration (dart, speedup) time
0-100 km/h3.2 seconds
0-60 mph3 seconds
  • 1/4 mile
  • -
  • 60 to 140 km/h, highest gear
  • -
