| TECHNICAL SPECIFICATION |
|---|
| Model ID |
|---|
| Manufacturer (Make) | Harley-Davidson |

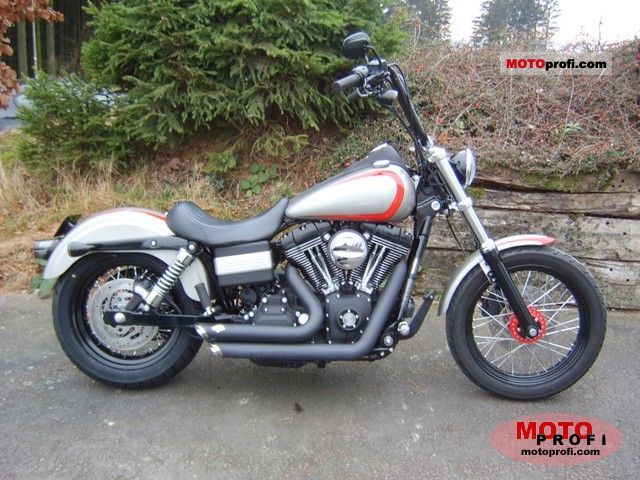

| Model Name | FXDB Dyna Street Bob |
| Year | 2008 |
| Category(class) | Cruiser / Chopper / Custom |
| Engine |
|---|
| Engine Capacity (Displacement) | 1573 ccm (95.99 cubic inches) |
| Engine Type | V2 |
| Bore x Stroke | Ø95.3 mm x 111.3 mm (Ø3.75 inches x 4.38 inches) |
| Bore/Stroke Ratio | 0.86 |
| Compression Ratio | 9.2:1 |
| Stroke | 4 |
| Fuel System(Carburetion) | Injection. Electronic Sequential Port Fuel Injection |
| Starter System | Electric |
| Cooling System | Air |
| Exhaust System | Chrome, staggered shorty exhaust w/ dual mufflers |
| Powertrain |
|---|
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Gearbox | 6 speed |
| Transmission (Final Drive) | Belt |
| Chassis/Suspension/Brakes |
|---|
| Front Brakes | Single disc. 4-piston calipers |
| Rear Brakes | Single disc. 2-piston calipers |
| Front Tire | 100/90-H19 |
| Rear Tire | 160/70-B17 |
| Dimensions |
|---|
| Overall Length | 2357 mm (92.8 inches) |
| Seat Height | 681 mm (26.81 inches) |
| Fork Angle (Rake) | 29.0° degrees |
| Trail | 114 mm (4.49 inches) |
| Wheelbase | 1631 mm (64.21 inches) |
| Ground Clearance | 124 mm (4.88 inches) |
| Dry Weight | 287.6 kg (634 lb) |
| Curb Weight | 302.5 kg (667 lb) |
| Fuel Capacity | 18.16 litres (4.8 gallons) |
| Performance |
|---|
| Max Torque | 123.39 Nm (90.73 ft*lbs) at 3125 RPM |
| Top Speed | - |
| Acceleration (dart, speedup) time | |
| 0-100 km/h | - |
| 0-60 mph | - |
| 1/4 mile | - |
| 60 to 140 km/h, highest gear | - |
| Fuel Consumption | 4.35 litres/100km (54.04 mpg) |
