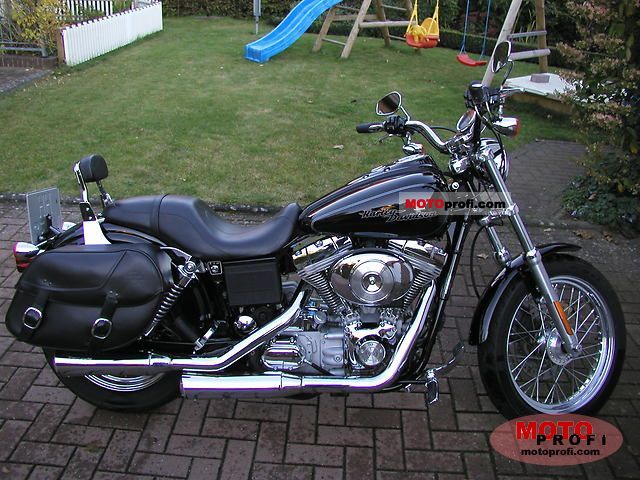

Harley-Davidson FXDCI Dyna Super Glide Custom 2006


Click photo to enlarge

TECHNICAL SPECIFICATION
Model ID
Manufacturer (Make)	Harley-Davidson
Model Name	FXDCI Dyna Super Glide Custom
Year	2006
Category(class)	Cruiser / Chopper / Custom
Engine
Engine Capacity (Displacement)	1442 ccm (88 cubic inches)
Engine Type	V2
Bore x Stroke	Ø95.3 mm x 101.6 mm (Ø3.75 inches x 4 inches)
Bore/Stroke Ratio	0.94
Compression Ratio	8.9:1
Stroke	4
Timing System	DOHC
Fuel System(Carburetion)	Injection. Electronic Sequential Port Fuel Injection
Cooling System	Air
Exhaust System	Chrome, staggered shorty duals
Powertrain
Clutch	Multi-plate with diaphragm spring in oil bath
Gearbox	6 speed
Transmission (Final Drive)	Belt
Chassis/Suspension/Brakes
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	100/90-19
Rear Tire	160/70-B17
Dimensions
Overall Length	2352 mm (92.6 inches)
Fork Angle (Rake)	29.0° degrees
Trail	119 mm (4.69 inches)
Wheelbase	1631 mm (64.21 inches)
Ground Clearance	152 mm (5.98 inches)
Dry Weight	290.8 kg (641 lb)
Curb Weight	303.9 kg (670 lb)
Fuel Capacity	18.16 litres (4.8 gallons)
Performance
Max Torque	115.26 Nm (84.75 ft*lbs) at 3000 RPM
Top Speed	-
Acceleration (dart, speedup) time
0-100 km/h	-
0-60 mph	-
1/4 mile	-
60 to 140 km/h, highest gear	-
