| TECHNICAL SPECIFICATION |
|---|
| Model ID |
|---|
| Manufacturer (Make) | Harley-Davidson |

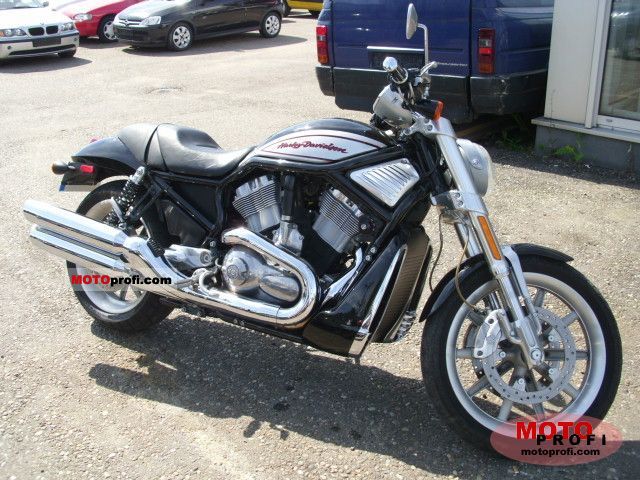

| Model Name | VRSCR Street Rod |
| Year | 2006 |
| Category(class) | Cruiser / Chopper / Custom |
| Engine |
|---|
| Engine Capacity (Displacement) | 1130 ccm (68.96 cubic inches) |
| Engine Type | V2 |
| Bore x Stroke | Ø100.1 mm x 72.1 mm (Ø3.94 inches x 2.84 inches) |
| Bore/Stroke Ratio | 1.39 |
| Compression Ratio | 11.3:1 |
| Stroke | 4 |
| Fuel System(Carburetion) | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Exhaust System | Chrome, straight-shot dual pipes |
| Powertrain |
|---|
| Clutch | Multi-plate clutch with diaphragm spring in oil bath |
| Gearbox | 5 speed |
| Transmission (Final Drive) | Belt |
| Chassis/Suspension/Brakes |
|---|
| Front Brakes | Double disc |
| Rear Brakes | Single disc |
| Front Tire | 120/70-ZR19 |
| Rear Tire | 180/55-ZR19 |
| Dimensions |
|---|
| Overall Length | 2380 mm (93.7 inches) |
| Seat Height | 762 mm (30 inches) |
| Passenger Seat Height | 787 mm (30.98 inches) |
| Fork Angle (Rake) | 30.0° degrees |
| Trail | 109 mm (4.29 inches) |
| Wheelbase | 1697 mm (66.81 inches) |
| Ground Clearance | 170 mm (6.69 inches) |
| Dry Weight | 280.3 kg (618 lb) |
| Curb Weight | 297.1 kg (655 lb) |
| Fuel Capacity | 18.92 litres (5 gallons) |
| Performance |
|---|
| Max Torque | 108.48 Nm (79.76 ft*lbs) at 7000 RPM |
| Top Speed | - |
| Acceleration (dart, speedup) time | |
| 0-100 km/h | - |
| 0-60 mph | - |
| 1/4 mile | - |
| 60 to 140 km/h, highest gear | - |
