Suzuki GSX-R750 2011

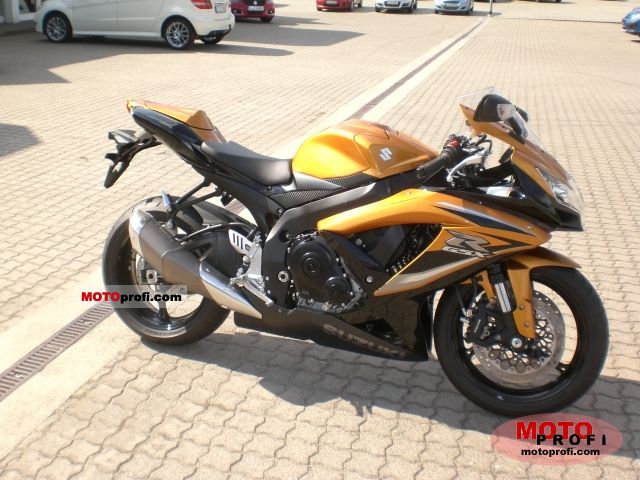

Suzuki GSX-R750 2011 photo
Suzuki GSX-R750 2011 photo 1Suzuki GSX-R750 2011 photo 2Suzuki GSX-R750 2011 photo 3
Suzuki GSX-R750 2011 photo 4Suzuki GSX-R750 2011 photo 5Suzuki GSX-R750 2011 photo 6
Suzuki GSX-R750 2011 photo 7Suzuki GSX-R750 2011 photo 8Suzuki GSX-R750 2011 photo 9
Suzuki GSX-R750 2011 photo 10Suzuki GSX-R750 2011 photo 11Suzuki GSX-R750 2011 photo 12
Suzuki GSX-R750 2011 photo 13Suzuki GSX-R750 2011 photo 14Suzuki GSX-R750 2011 photo 15
Click photo to enlarge
All pictures (18)


TECHNICAL SPECIFICATION
Model ID
Manufacturer (Make)Suzuki
Model NameGSX-R750
Year2011
Category(class)Sport
Engine
Engine Capacity (Displacement)999 ccm (60.96 cubic inches)
Engine TypeIn-line four, four-stroke
Bore x StrokeØ70.0 mm x 48.7 mm (Ø2.76 inches x 1.92 inches)
Bore/Stroke Ratio1.44
Compression Ratio12.5:1
Timing SystemDOHC
Fuel System(Carburetion)Injection
IgnitionAdvanced, race-developed transistorized ignition control circuit helps maintain more precise ignition timing across the range of engine temperature.
Starter SystemElectric
Lubrication SystemWet sump
Cooling SystemLiquid
Powertrain
Gearbox6 speed
Transmission (Final Drive)Chain
Chassis/Suspension/Brakes
Frame TypeTwin-spar Aluminum Frame
Front SuspensionInverted, telescopic, coil spring, oil damped
Front Suspension Travel130 mm (5.12 inches)
Rear SuspensionLink type, coil spring, oil damped
Rear Suspension Travel136 mm (5.35 inches)
Front BrakesDouble disc. Bremo, 4-piston
Front Brakes DiameterØ310 mm (Ø12.2 inches)
Rear BrakesSingle disc. Bremo
Rear Brakes DiameterØ220 mm (Ø8.66 inches)
Front Tire120/70-ZR17
Rear Tire180/55-ZR17
Dimensions
Overall Length2030 mm (79.92 inches)
Overall Width710 mm (27.95 inches)
Overall Height1135 mm (44.69 inches)
Seat Height810 mm (31.89 inches)
Fork Angle (Rake)23.9° degrees
Trail97 mm (3.82 inches)
Wheelbase1390 mm (54.72 inches)
Ground Clearance130 mm (5.12 inches)
Curb Weight190.0 kg (419 lb)
Fuel Capacity 17.00 litres (4.49 gallons)
Performance
Max Power201.15 HP (146.8 kW) at 1200 RPM
Max Torque86.30 Nm (63.46 ft*lbs) at 11200 RPM
Power/Weight Ratio1.06 Hp/Kg
Top Speed-
Acceleration (dart, speedup) time
0-100 km/h2.8 seconds
0-60 mph2.6 seconds
  • 1/4 mile
  • -
  • 60 to 140 km/h, highest gear
  • -
