| TECHNICAL SPECIFICATION |
|---|
| Model ID |
|---|
| Manufacturer (Make) | Triumph |

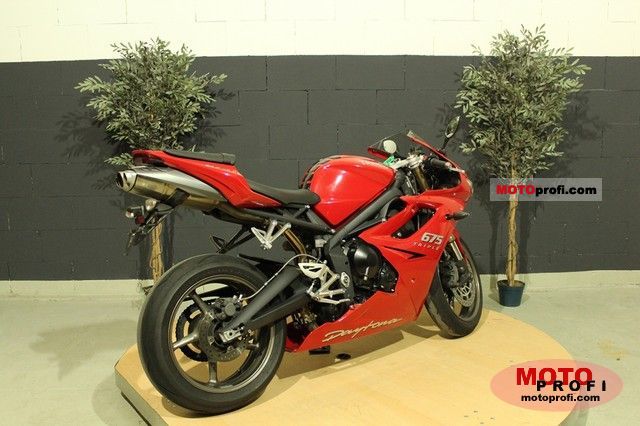

| Model Name | Daytona 675 |
| Year | 2010 |
| Category(class) | Classic |
| Engine |
|---|
| Engine Capacity (Displacement) | 675 ccm (41.19 cubic inches) |
| Engine Type | In-line three, four-stroke |
| Bore x Stroke | Ø74.0 mm x 52.3 mm (Ø2.91 inches x 2.06 inches) |
| Bore/Stroke Ratio | 1.41 |
| Compression Ratio | 12.7:1 |
| Valves per Cylinder | 4 |
| Timing System | DOHC |
| Fuel System(Carburetion) | Injection. Multipoint sequential electronic fuel injection with forced air induction |
| Starter System | Electric |
| Cooling System | Liquid |
| Powertrain |
|---|
| Clutch | Wet. multi-plate |
| Gearbox | 6 speed |
| Transmission (Final Drive) | Chain |
| Chassis/Suspension/Brakes |
|---|
| Frame Type | Aluminium beam twin spar. Swingarm: braced, twin-sided, aluminium alloy with adjustable pivot position. |
| Front Suspension | Kayaba 41mm upside down forks with adjustable preload, rebound and high/low speed compression damping |
| Front Suspension Travel | 130 mm (5.12 inches) |
| Rear Suspension | Kayaba monoshock with piggy back reservoir adjustable for preload, rebound and high/low speed comporession damping |
| Rear Suspension Travel | 130 mm (5.12 inches) |
| Front Brakes | Double disc. Nissin 4-piston radial mono-block calipers |
| Front Brakes Diameter | Ø308 mm (Ø12.13 inches) |
| Rear Brakes | Single disc. Nissin single piston caliper |
| Rear Brakes Diameter | Ø220 mm (Ø8.66 inches) |
| Front Tire | 120/70-ZR17 |
| Rear Tire | 180/55-ZR17 |
| Dimensions |
|---|
| Overall Length | 2010 mm (79.13 inches) |
| Overall Width | 700 mm (27.56 inches) |
| Overall Height | 1120 mm (44.09 inches) |
| Seat Height | 825 mm (32.48 inches) |
| Fork Angle (Rake) | 23.9° degrees |
| Wheelbase | 1395 mm (54.92 inches) |
| Dry Weight | 162.0 kg (357 lb) |
| Curb Weight | 184.0 kg (406 lb) |
| Fuel Capacity | 17.40 litres (4.6 gallons) |
| Performance |
|---|
| Max Power | 126.05 HP (92.0 kW) at 12600 RPM |
| Max Torque | 75.00 Nm (55.15 ft*lbs) at 11750 RPM |
| Power/Weight Ratio | 0.69 Hp/Kg |
| Top Speed | - |
| Acceleration (dart, speedup) time | |
| 0-100 km/h | 3.2 seconds |
| 0-60 mph | 3 seconds |
| 1/4 mile | - |
| 60 to 140 km/h, highest gear | - |
