Motorcycle Specs and Pictures


Yamaha FZ6 S2 ABS 2009

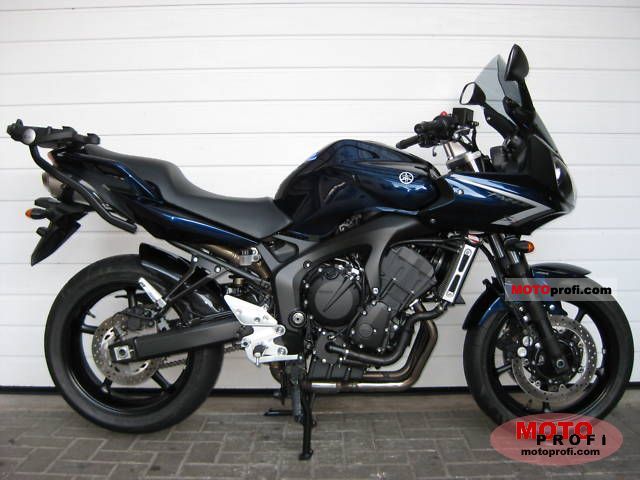

Yamaha FZ6 S2 ABS 2009 photo
Yamaha FZ6 S2 ABS 2009 photo 1Yamaha FZ6 S2 ABS 2009 photo 2Yamaha FZ6 S2 ABS 2009 photo 3
Yamaha FZ6 S2 ABS 2009 photo 4Yamaha FZ6 S2 ABS 2009 photo 5Yamaha FZ6 S2 ABS 2009 photo 6
Yamaha FZ6 S2 ABS 2009 photo 7Yamaha FZ6 S2 ABS 2009 photo 8Yamaha FZ6 S2 ABS 2009 photo 9
Yamaha FZ6 S2 ABS 2009 photo 10Yamaha FZ6 S2 ABS 2009 photo 11Yamaha FZ6 S2 ABS 2009 photo 12
Yamaha FZ6 S2 ABS 2009 photo 13
Click photo to enlarge


TECHNICAL SPECIFICATION
Model ID
Manufacturer (Make)Yamaha
Model NameFZ6 S2 ABS
Year2009
Category(class)Street Fighter
Engine
Engine Capacity (Displacement)600 ccm (36.61 cubic inches)
Engine TypeIn-line four, four-stroke
Bore x StrokeØ65.5 mm x 44.5 mm (Ø2.58 inches x 1.75 inches)
Bore/Stroke Ratio1.47
Timing SystemDOHC
Fuel System(Carburetion)Injection
IgnitionTCI
Lubrication SystemWet sump
Cooling SystemLiquid
Powertrain
ClutchWet, multiple-disc
Gearbox6 speed
Chassis/Suspension/Brakes
Frame TypeAluminium, diamond shaped
Front SuspensionTelescopic forks
Front Suspension Travel130 mm (5.12 inches)
Rear SuspensionSwingarm (monocross)
Rear Suspension Travel130 mm (5.12 inches)
Front BrakesDouble disc. ABS
Front Brakes DiameterØ298 mm (Ø11.73 inches)
Rear BrakesSingle disc. ABS
Rear Brakes DiameterØ245 mm (Ø9.65 inches)
Front Tire120/70-ZR17
Rear Tire180/55-ZR17
Dimensions
Overall Length2095 mm (82.48 inches)
Overall Width755 mm (29.72 inches)
Seat Height795 mm (31.3 inches)
Trail98 mm (3.86 inches)
Wheelbase1440 mm (56.69 inches)
Ground Clearance145 mm (5.71 inches)
Curb Weight201.0 kg (443 lb)
Fuel Capacity 19.40 litres (5.13 gallons)
Performance
Max Power96.55 HP (70.5 kW)
Max Torque63.10 Nm (46.4 ft*lbs) at 6400 RPM
Power/Weight Ratio0.48 Hp/Kg
Top Speed-
Acceleration (dart, speedup) time
0-100 km/h3.8 seconds
0-60 mph3.6 seconds
  • 1/4 mile
  • -
  • 60 to 140 km/h, highest gear
  • -
