| TECHNICAL SPECIFICATION |
|---|
| Model ID |
|---|
| Manufacturer (Make) | Yamaha |

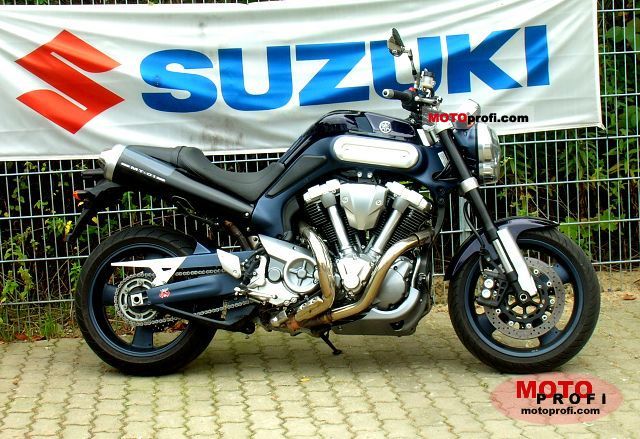

| Model Name | MT-01 |
| Year | 2006 |
| Category(class) | Street Fighter |
| Engine |
|---|
| Engine Capacity (Displacement) | 1670 ccm (101.91 cubic inches) |
| Engine Type | V2 |
| Bore x Stroke | Ø97.0 mm x 113.0 mm (Ø3.82 inches x 4.45 inches) |
| Bore/Stroke Ratio | 0.86 |
| Compression Ratio | 8.4:1 |
| Stroke | 4 |
| Valves per Cylinder | 4 |
| Timing System | OHV |
| Fuel System(Carburetion) | Injection |
| Ignition | TCI |
| Starter System | Electric |
| Lubrication System | Dry sump |
| Cooling System | Air |
| Powertrain |
|---|
| Clutch | Wet, multiple-disc |
| Gearbox | 5 speed |
| Transmission (Final Drive) | Chain |
| Chassis/Suspension/Brakes |
|---|
| Front Suspension | 120 |
| Front Suspension Travel | 43 mm (1.69 inches) |
| Rear Suspension | 117 |
| Front Brakes | Double disc |
| Front Brakes Diameter | Ø320 mm (Ø12.6 inches) |
| Rear Brakes | Single disc |
| Rear Brakes Diameter | Ø267 mm (Ø10.51 inches) |
| Front Tire | 120/70-ZR17 |
| Rear Tire | 190/50-ZR17 |
| Dimensions |
|---|
| Overall Length | 2185 mm (86.02 inches) |
| Overall Width | 790 mm (31.1 inches) |
| Overall Height | 1160 mm (45.67 inches) |
| Seat Height | 825 mm (32.48 inches) |
| Wheelbase | 1525 mm (60.04 inches) |
| Ground Clearance | 140 mm (5.51 inches) |
| Dry Weight | 240.0 kg (529 lb) |
| Fuel Capacity | 15.00 litres (3.96 gallons) |
| Performance |
|---|
| Max Power | 88.90 HP (64.9 kW) at 4750 RPM |
| Max Torque | 150.10 Nm (110.37 ft*lbs) at 6930 RPM |
| Power/Weight Ratio | 0.33 Hp/Kg |
| Top Speed | - |
| Acceleration (dart, speedup) time | |
| 0-100 km/h | 3.7 seconds |
| 0-60 mph | 3.5 seconds |
| 1/4 mile | - |
| 60 to 140 km/h, highest gear | - |
