MV Agusta Brutale 1090RR 2010

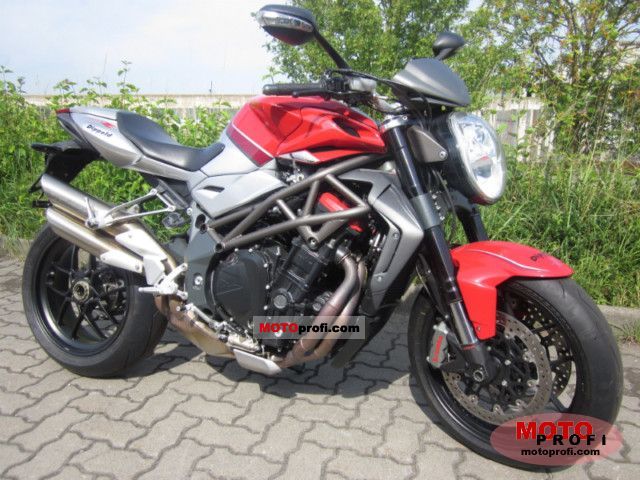

MV Agusta Brutale 1090RR 2010 photo
MV Agusta Brutale 1090RR 2010 photo 1MV Agusta Brutale 1090RR 2010 photo 2MV Agusta Brutale 1090RR 2010 photo 3
MV Agusta Brutale 1090RR 2010 photo 4MV Agusta Brutale 1090RR 2010 photo 5MV Agusta Brutale 1090RR 2010 photo 6
MV Agusta Brutale 1090RR 2010 photo 7MV Agusta Brutale 1090RR 2010 photo 8MV Agusta Brutale 1090RR 2010 photo 9
MV Agusta Brutale 1090RR 2010 photo 10MV Agusta Brutale 1090RR 2010 photo 11MV Agusta Brutale 1090RR 2010 photo 12
MV Agusta Brutale 1090RR 2010 photo 13MV Agusta Brutale 1090RR 2010 photo 14MV Agusta Brutale 1090RR 2010 photo 15
Click photo to enlarge
All pictures (21)


TECHNICAL SPECIFICATION
Model ID
Manufacturer (Make)MV Agusta
Model NameBrutale 1090RR
Year2010
Category(class)Street Fighter
Engine
Engine Capacity (Displacement)1078 ccm (65.78 cubic inches)
Engine TypeIn-line four, four-stroke
Bore x StrokeØ79.0 mm x 55.0 mm (Ø3.11 inches x 2.17 inches)
Bore/Stroke Ratio1.44
Compression Ratio13.0:1
Valves per Cylinder4
Timing SystemDOHC
Fuel System(Carburetion)Injection
IgnitionMagneti Marelli 5SM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; sequential timed Multipoint electronic injection
Starter SystemElectric
Lubrication SystemDouble rotor pump
Cooling SystemOil & air
Powertrain
ClutchSlipper clutch,
Gearbox6 speed
Transmission (Final Drive)Chain
Chassis/Suspension/Brakes
Frame TypeCrMo Steel tubular trellis (TIG welded)
Front SuspensionUpside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment
Front Suspension Travel130 mm (5.12 inches)
Rear SuspensionProgressive, single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload adjustment
Rear Suspension Travel120 mm (4.72 inches)
Front BrakesDouble disc. Bremo, 4-piston caliper
Front Brakes DiameterØ320 mm (Ø12.6 inches)
Rear BrakesSingle disc. Bremo, 4-piston caliper
Rear Brakes DiameterØ210 mm (Ø8.27 inches)
Front Tire120/70-ZR17
Rear Tire190/55-ZR17
Dimensions
Overall Length2093 mm (82.4 inches)
Overall Width760 mm (29.92 inches)
Overall Height830 mm (32.68 inches)
Trail104 mm (4.09 inches)
Wheelbase1438 mm (56.61 inches)
Ground Clearance150 mm (5.91 inches)
Dry Weight190.0 kg (419 lb)
Fuel Capacity 23.00 litres (6.08 gallons)
Reserve Fuel Capacity 4.00 litres (1.06 gallons)
Performance
Max Power144.20 HP (105.3 kW) at 10600 RPM
Max Torque115.00 Nm (84.56 ft*lbs) at 8000 RPM
Power/Weight Ratio0.68 Hp/Kg
Top Speed265.0 km/h (165mph)
Acceleration (dart, speedup) time
0-100 km/h3.2 seconds
0-60 mph3 seconds
  • 1/4 mile
  • -
  • 60 to 140 km/h, highest gear
  • -
